LISAHALLY POWER STATION
Employer
Burmeister & Wain Scandinavian Contractor A/SLocation
Londonderry, Northern IrelandYear
2013-2014
Back to projects
Description
Danish engineering company Burmeister & Wain Scandinavian Contractor A/S (BWSC) was in autumn 2013 awarded a contract to build a combined heat (6.1 MWth) and power (15.8 MWe) turnkey biomass (woodchip) power plant in Londonderry, Northern Ireland. Aqvila subsequently won the design & supply sub-contract for the civil and building works.

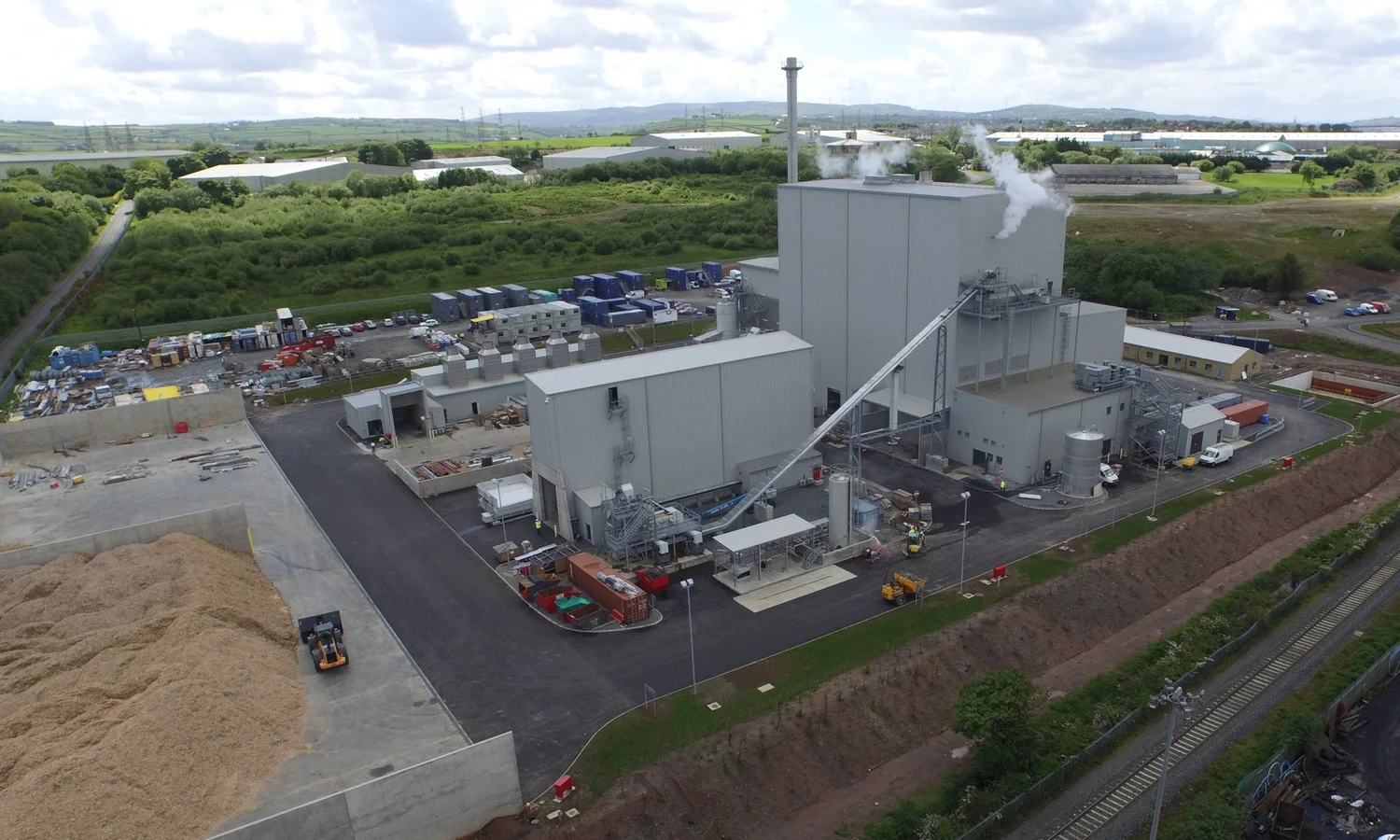

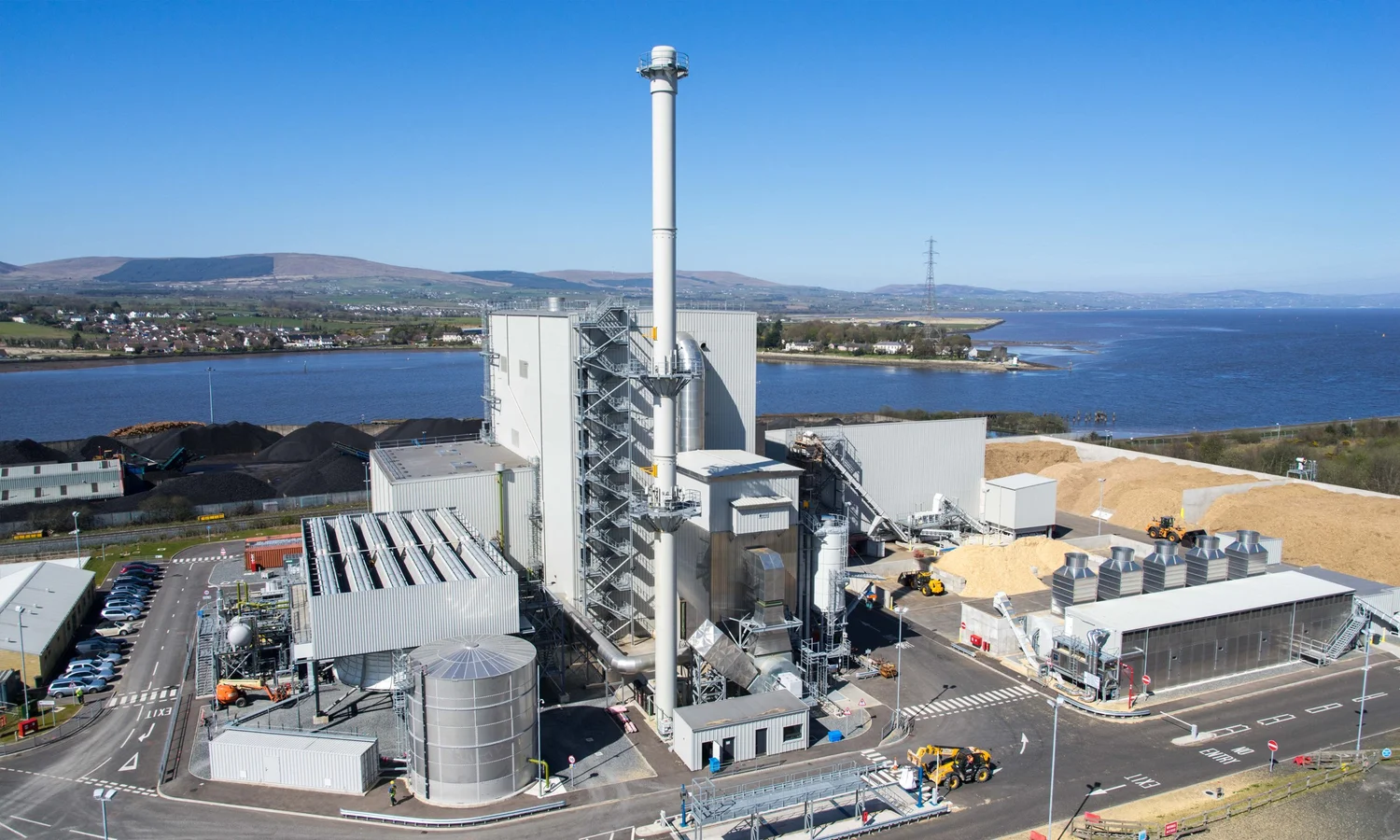

The power plant is located on a greenfield site adjacent to Londonderry Port on the banks of the River Foyle – close to where the River Foyle discharges into Lough Foyle.
The power plant consists of a main building (divided in a service building, a boiler building and a turbine building), 33kV substation building, woodchip storage building (concrete silo), woodchip dryer building, as well as concrete structures for tanks and bonded areas, transformers, stack, filters, conveyors, fans, silencers, waste wood storage areas, virgin wood storage areas, weighbridge, air-cooled condenser and fire fighting equipment.
Aqvila’s works included the detailed design of all reinforced concrete sub- and superstructures, including 3D-modelling and preparation of bar-bending schedules as well as design, manufacture and supply of primary and secondary structural steel, cladding envelope, overhead travelling crane, doors and windows.
Focus on providing value-for-money for our client ensured the design of a light easily assembled steel superstructure, prefabricated in sections suitable for transport on truck, meaning that the steel buildings could be erected using bolted connections only.
